CCD Networking Pty Ltd
National Museum of Australia opened on Sunday March 11 2001

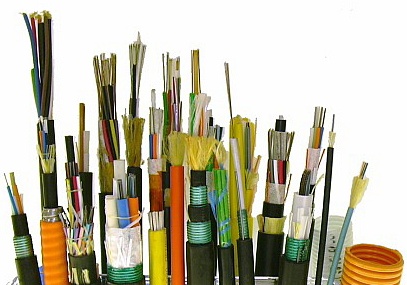

CCD manufacture, supply and deliver Copper and Fibre Optic Cables of any length, colour, mode, mode conditioned or connector to any location in Australia.
Red, White, Blue, Green, Orange, Black, Pink, Yellow, Aqua , Gray, Purple,
Examples only, of any length, colour, coloured boot or connector.
Cat 5, Cat 6, Cat 7, Blue .05m, 1.0m, 2.0m, 3.0m, 5.0m, 10.0m, 15m, 20m
Any diameter: (50/125um, 62.5/125um, 9/125um, 9um,)
LC connector
A miniaturised version of the fibre-optic SC connector. It looks just like the SC, but is half the size with a 1.25 mm ferrule instead of 2.5 mm.
LC to LC, Orange 2.0m Duplex OM3 MMOF
LC to SC, Grey 2.0m Duplex MMOF
LC to MT-RJ, Yellow 1.0m Duplex OS1 SMOF
LC to ST, Orange 2.0m Duplex MMOF
SC connector
A fibre-optic cable connector that uses a push-pull latching mechanism similar to common audio and video cables. For bi-directional transmission, two fibre cables and two SC connectors (DX - Dual SC) are generally used. It can be separated individually to form two simplex SC connectors and comes complete with a strain relief boot offering a wide range of multi-media applications.
SC to SC, Yellow 2.0m Duplex OM3 SMOF
SC to MT-RJ, Black 2.0m Duplex MMOF
SC to ST, Purple 2.0m Duplex MMOF
SC to LC Aqua 2.0m OM1 MMOF 9/125
MT-RJ connector
A fibre-optic cable connector that is very popular for small form factor devices due to its small size. Housing two fibres and mating together with locating pins on the plug, the MT-RJ comes from the MT connector, which can contain up to 12 fibres. It uses rectangular ferrules instead of round ones. MT-RJ stands for Mechanical Transfer Registered Jack.
MT-RJ to MT-RJ, Red 2.0m Duplex OM3 MMOF
MT-RJ to ST, White 10.0m Duplex OM3 MMOF
MT-RJ to SC, Salmon Pink 5.0m Duplex OM3 MMOF
MT-RJ to LC, Yellow 3.0m Duplex OS1 SMOF
ST connector
A fibre-optic cable connector that uses a bayonet plug and socket. It was the first de facto standard connector for most commercial wiring. For bi-directional transmission, two fibre cables and two ST connectors are generally used.
ST to ST, Orange 2.0m Duplex OM3 MMOF
ST to SC, Grey 2.0m Duplex MMOF
ST to MT-RJ, Yellow 1.0m Duplex OS1 SMOF
ST to LC, Orange 2.0m Duplex MMOF
SCA or STA
SCA to SCA, Yellow 2.0m Duplex OS1 SMOF
STA to STA, Yellow 2.0m Duplex OS1 SMOF
RJ-45
Definition: RJ45 is a standard type of connector for network cables. RJ45 connectors are most commonly seen with Ethernet cables and networks.
Short for Registered Jack-45, an eight-wire connector used commonly to connect computers onto a local-area networks (LAN), especially Ethernets. RJ-45 connectors look similar to the ubiquitous RJ-11 connectors used for connecting telephone equipment, but they are somewhat wider.
